Tapered / Angled Seat Bung

$15.50
No reviews yet Write Review Ask Questions

Tapered / Angled Seat Bung

In Stock & Ready To Ship!
Current Stock:Only left:
Description

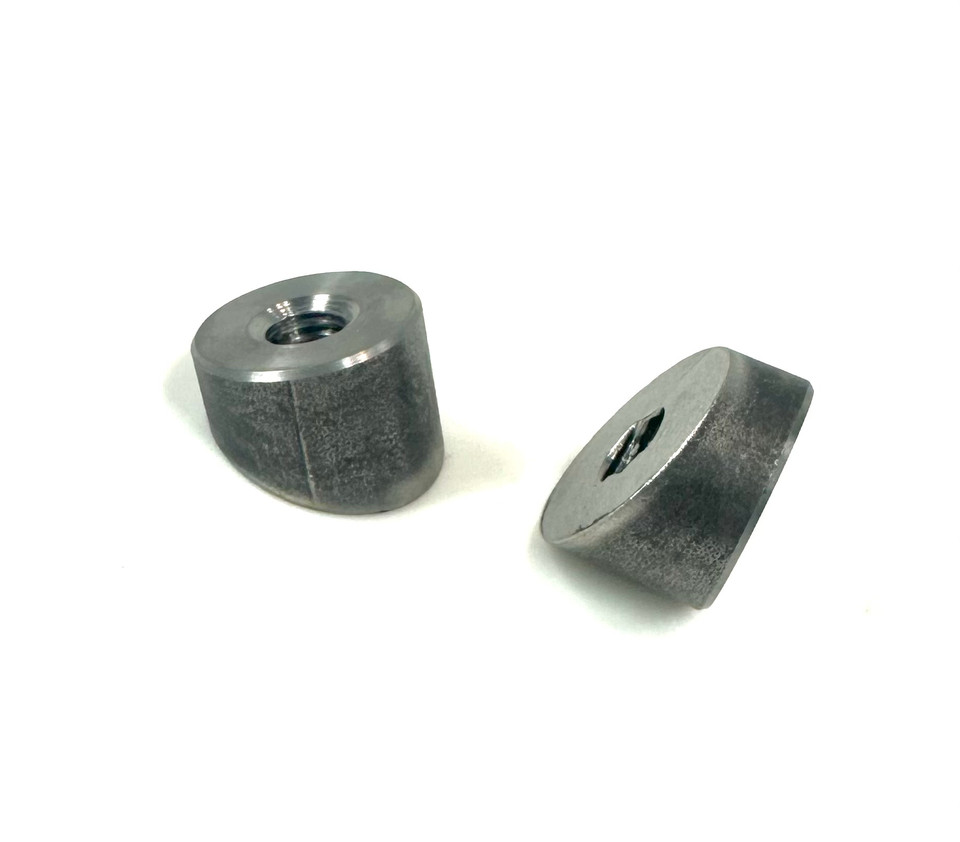

Tapered / Angled Seat Pan Bungs

These tapered seat bugs are used to attach the springs for a sprung seat when a flat bung will not work. The taperd side gets welded to the seat pan to help create a more parallel orientation for the seat spring for a reduction in spring bind.

  • 1" O.D. cold rolled steel
  • Cut at a 20 degree angle
  • .300" long at the short side
  • Tapped to 3/8x16 or 5/16x18
  • sold in pairs





TAPERED ANGLE CUT SEAT PAN BUNG 3/8 X 16, 5/16" X 18 THREADED MOUNT FOR SPING SUPPORT OF SEAT ON CHOPPER BOBBER
TAPERED ANGLE CUT SEAT PAN BUNG 3/8 X 16, 5/16" X 18 THREADED MOUNT FOR SPING SUPPORT OF SEAT ON CHOPPER BOBBER
TAPERED ANGLE CUT SEAT PAN BUNG 3/8 X 16, 5/16" X 18 THREADED MOUNT FOR SPING SUPPORT OF SEAT ON CHOPPER BOBBER
TAPERED ANGLE CUT SEAT PAN BUNG 3/8 X 16, 5/16" X 18 THREADED MOUNT FOR SPING SUPPORT OF SEAT ON CHOPPER BOBBER
TAPERED ANGLE CUT SEAT PAN BUNG 3/8 X 16, 5/16" X 18 THREADED MOUNT FOR SPING SUPPORT OF SEAT ON CHOPPER BOBBER
TAPERED ANGLE CUT SEAT PAN BUNG 3/8 X 16, 5/16" X 18 THREADED MOUNT FOR SPING SUPPORT OF SEAT ON CHOPPER BOBBER
